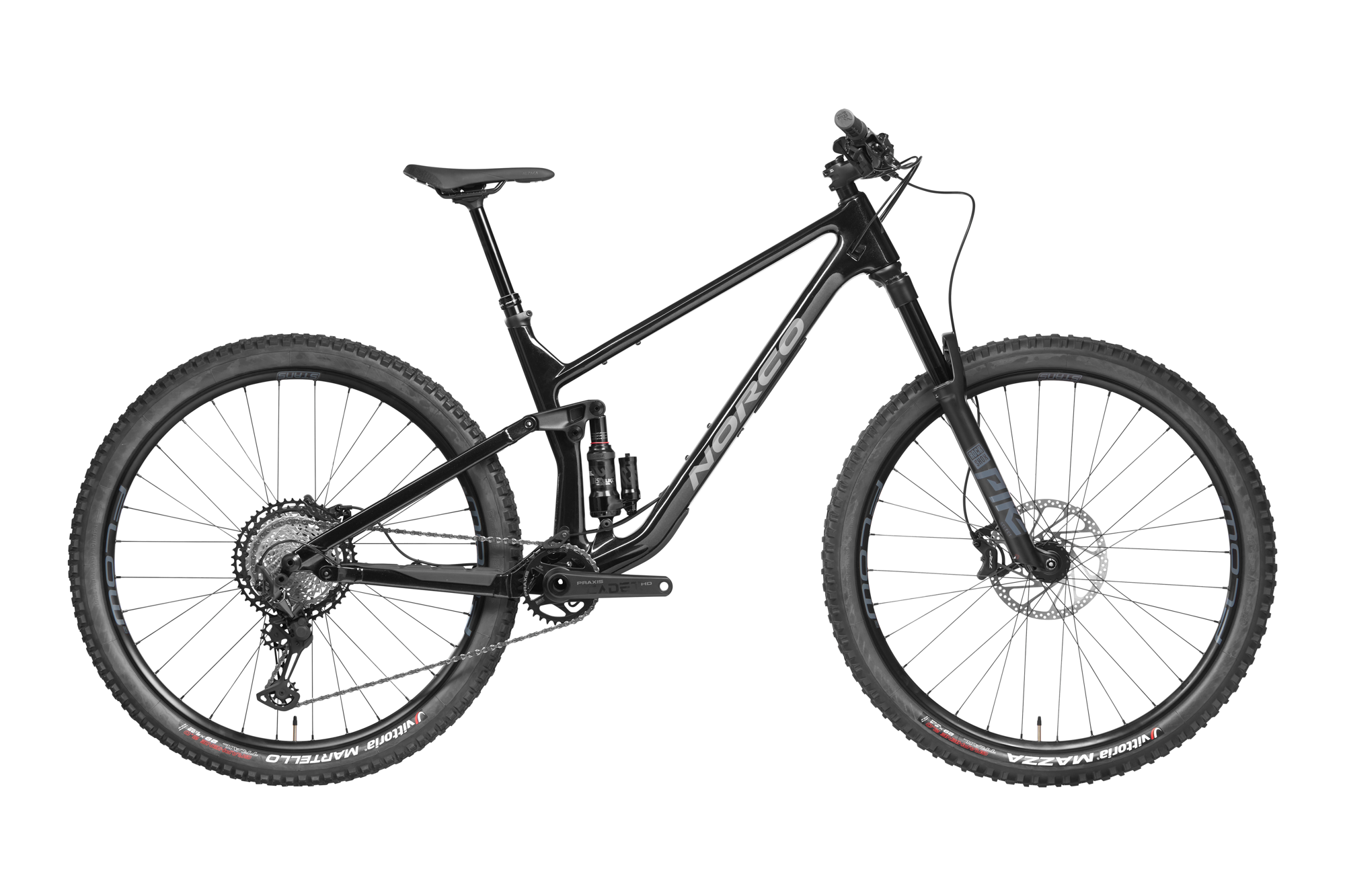

Norco Mountain Bike Optic C3 Black/Grey

The Optic C2 is an aggressive short-travel sled that rips on descents and can get back to...
Availability: In Stock
$3,999.00 AUD
$5,599.00
$3,999.00 AUD
Please hurry! Only 2 left in stock
Size: L
Subtotal: $3,999.00

Shipping

Free Delivery on orders over $100 excluding large and bulky items

norco-mountain-bike-optic-c3-black-grey

Norco Mountain Bike Optic C3 Black/Grey

$5,599.00 $3,999.00
norco-mountain-bike-optic-c3-black-grey

Norco Mountain Bike Optic C3 Black/Grey

$5,599.00 $3,999.00
Size: L
Description
Description
x

Find Focus
There’s a few good reasons why the Optic won the Pinkbike 2019 Mountain Bike of the Year – but the only one that matters is that it’s faster and more fun than any 125mm Trail bike should be.

The Optic C2 sharpens your view on high speed trails.
The precision suspension kinematics and custom DH spec shock creates 125mm of rear travel, matched with a gravity-eating 140mm fork for the control you need to keep your mind on the trail ahead.

Fast never felt this fun.
Steering geometry is perfect for charging descents without sacrificing precision and maneuverability on every part of your favourite high-speed rides.

Designed to work so you can play.
The Optic’s evolved suspension design is designed around custom tuned RockShox and Fox shocks that makes the most of every one of the 125mm of travel.

Components selected with speed on the brain.
Four-piston 180mm disc brakes, short seat tubes, long-stroke dropper posts and aggressive knobby tires tame the wildest descents and attack every turn.

Matching each Optic to the human who rides it.
The Ride Aligned™ Design System optimizes performance using individual rider metrics, precise suspension kinematics, and proprietary app technology.

Specification
Specification
x

FRAMESET

Frame

Carbon Front Triangle, Aluminum Rear, 125mm Travel, Ride Aligned™

Fork

Rockshox Pike Select RC, Debonair, 140mm Travel, 42mm Offset

Rear Shock

Rockshox Super Deluxe Ultimate DH Custom RC, 190x45mm

DRIVETRAIN

Rear Shifter

Shimano SLX SL-M7100-IR I-Spec EV

Rear Derailleur

Shimano XT RD-M8100

Crankset

Praxis Cadet M30, 32T, 170mm

Bottom Bracket

Praxis M30 PF92

Chain Tensioner

GW 1x Flip Guide

Cassette

Shimano SLX, 10-51T, 12 Speed

Chain

Shimano Deore

BRAKES

Front Brake

TRP Slate EVO 203mm

Front Brake Rotor

TRP TR180-29 180mm

Rear Brake

TRP Slate EVO 180mm

Rear Brake Rotor

TRP TR180-29 180mm

Brake Levers

TRP Slate EVO

COMPONENTS

Handlebar

Butted 6061 Alloy, 780mm, 20mm Rise

Stem

6061 Alloy, 45mm Length, 35mm Clamp

Seatpost

X-Fusion Manic Dropper, 31.6mm, 125mm (S), 150mm (M,L), 170mm (XL)

Headset

FSA Internal Sealed Bearing

Saddle

Fizik Alpaca Terra, Wingflex

Grips

DMR Deathgrip

WHEELS

Front Hub

Bear Pawls Sealed Bearing, 15x110mm Boost, 6 Bolt

Rear Hub

Bear Pawls Sealed Bearing, 12x148mm Boost, Micro Spline, 6 Bolt

Rims

Stan's Flow S1 29", 32H

Front Tire

Vittoria Mazza 2.4" Trail G2.0

Rear Tire

Vittoria Martello 2.35" Trail G2.0

Spokes/Nipples

Sapim Sprint DB Stainless

Valves

Stan's Universal 35mm Presta Valve Stem

Sealant

Stan's - 200ml



Geometry
Geometry
x
norco-mountain-bike-optic-c3-2023-geo

      XL L M S
  Wheel Size 29" 29" 29" 29"
  Travel (mm front/mm rear)
140/125
  Reach 510 480 450 420
   Stack 638 629 620 611
HTA Head Tube Angle
65
OS Fork Offset
42
ST Seat Tube Length 485 445 415 395
STA Effective Seat Tube Angle
76
RC Rear Centre Length 440 435 430 425
BB Bottom Bracket Drop
38
BBH Bottom Bracket Height
337
HTT Horizontal Top Tube 669 637 605 572
WB Wheelbase 1275 1235 1196 1157
SOH Standover 719 698 680 664
HT Head Tube Length 130 120 110 100
  Trail
129
  Recommended Seatpost Drop
170
 150 125
  Maximum Post Insertion 250 240 220 205
  Stem Length
45
  Crank Length
170
  Tire Size
2.35" – 2.6"
  Water Bottle Compatible
1 x 750 mL
