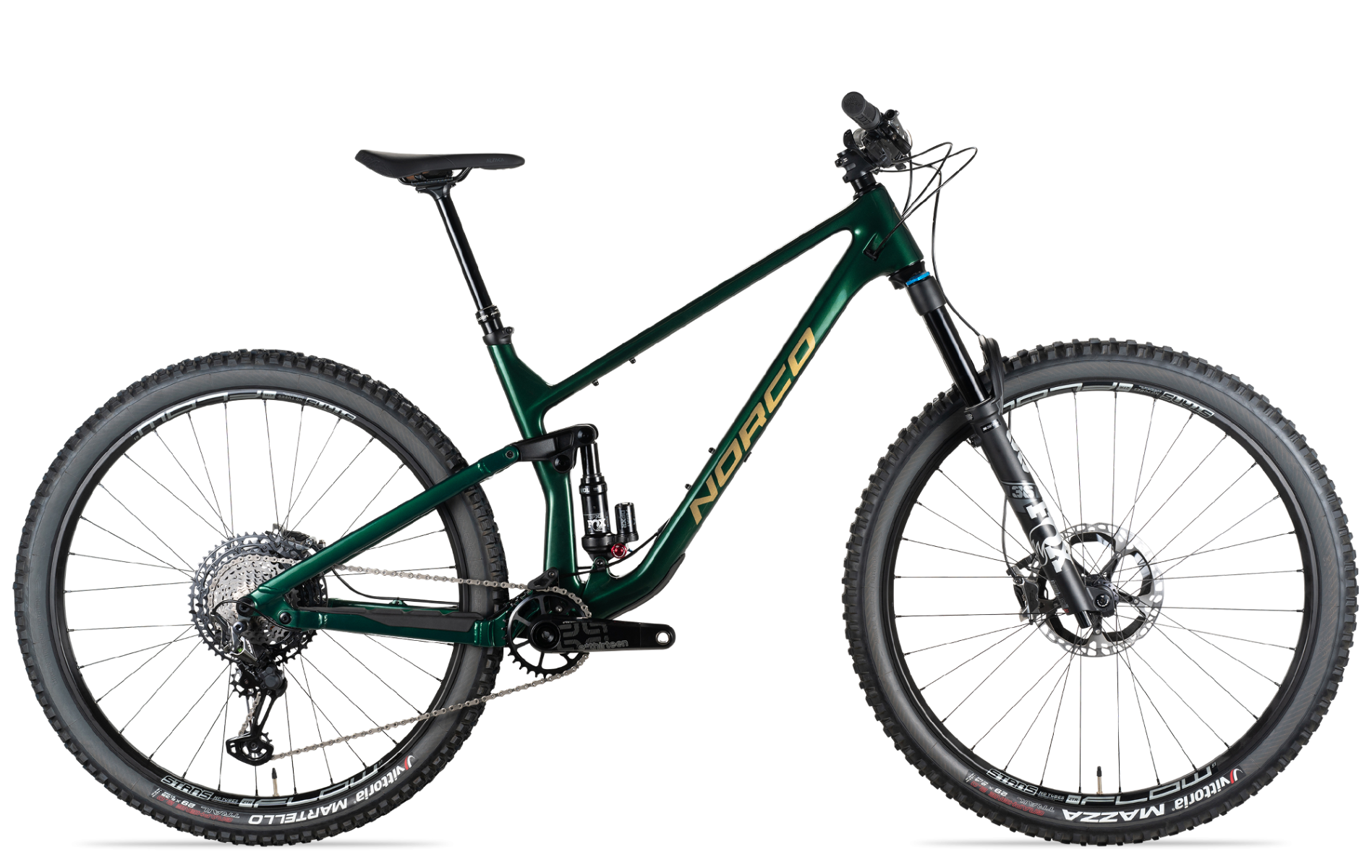

Norco Mountain Bike Optic C1 Shimano Green/Copper

The Optic C2 is an aggressive short-travel sled that rips on descents and can get back to...
Availability: In Stock
$5,699.00 AUD
$7,499.00
$5,699.00 AUD
Please hurry! Only 1 left in stock
Size: M
Subtotal: $5,699.00

Shipping

Free Delivery on orders over $100 excluding large and bulky items

norco-mountain-bike-optic-c1-shimano-green-copper-1

Norco Mountain Bike Optic C1 Shimano Green/Copper

$7,499.00 $5,699.00
norco-mountain-bike-optic-c1-shimano-green-copper-1
norco-mountain-bike-optic-c1-shimano-green-copper-1
norco-mountain-bike-optic-c1-shimano-green-copper-1
norco-mountain-bike-optic-c1-shimano-green-copper-1
norco-mountain-bike-optic-c1-shimano-green-copper-1
norco-mountain-bike-optic-c1-shimano-green-copper-1
norco-mountain-bike-optic-c1-shimano-green-copper-1

Norco Mountain Bike Optic C1 Shimano Green/Copper

$7,499.00 $5,699.00
Size: M
Description
Description
x

The Optic C2 sharpens your view on high speed trails.

The precision suspension kinematics and custom DH spec shock creates 125mm of rear travel, matched with a gravity-eating 140mm fork for the control you need to keep your mind on the trail ahead.

Reasons It's Rad

  • Fast never felt this fun.
  • Designed to work so you can play.
  • Components selected with speed on the brain.
  • Features the Ride Aligned™ Design System.
Specification
Specification
x
  • Frame Carbon Front Triangle, Aluminum Rear, 125mm Travel, Ride Aligned™
  • Fork RockShox Pike Select + RC, DebonAir, 140mm Travel, 42mm Offset
  • Rear Shock RockShox Super Deluxe Ultimate DH Custom RC, 190x45mm
  • Rear Shifter SRAM GX Eagle 12spd
  • Rear Derailleur SRAM GX Eagle
  • Crankset SRAM GX Eagle DUB Lunar, 32T, 170mm
  • Bottom Bracket SRAM DUB PF92
  • Cassette SRAM XG1275 Eagle, 10-52T
  • Chain SRAM GX Eagle
  • Front Brake Shimano Deore BR-MT520, 4 piston
  • Front Brake Rotor Shimano SM-RT66 203mm, Metallic
  • Rear Brake Shimano Deore BR-MT520, 4 Piston
  • Rear Brake Rotor Shimano SM-RT66 180mm, Metallic
  • Brake Levers Shimano Deore BR-MT520
  • Handlebar TranzX Butted 6061 Alloy, 780mm, 20mm Rise
  • Stem 6061 Alloy 45mm Length, 35mm Clamp
  • Seatpost X-Fusion Manic dropper, 31.6mm, 125mm (S), 150mm (M,L), 170mm (XL)
  • Headset FSA Internal Sealed Bearing
  • Saddle Fizik Alpaca Terra, Wingflex
  • Grips DMR Deathgrip
  • Seatpost Clamp Norco Alloy Nutted Clamp
  • Front Hub DT Swiss 350 15x110mm Boost, 6 Bolt
  • Rear Hub DT Swiss 350 12x148mm Boost, XD, 6 Bolt
  • Rims Stan's Flow S1 29", 32H
  • Front Tire Vittoria Mazza 2.4" Trail G2.0
  • Rear Tire Vittoria Martello 2.35" Trail G2.0
  • Spokes/Nipples Sapim Sprint DB Stainless
  • Valves Stan's Universal 35mm Presta Valve Stem
  • Sealant Stan's - 200ml
  • Rim Tape Stan's Rim Tape 55m x 30mm (Fits Flow rims)
Geometry
Geometry
x
norco-mountain-bike-optic-c1-shimano-geo


    S M L XL
  Wheel Size 29" 29" 29" 29"
  Travel (mm front/mm rear)
140/125
  Reach 420 450 480 510
  Stack 611 620 629 638
HTA Head Tube Angle
65.0
OS Fork Offset
42
ST Seat Tube Length 395 415 445 485
STA Effective Seat Tube Angle
76.0
RC Rear Centre Length 425 430 435 440
BB Bottom Bracket Drop
38
BBH Bottom Bracket Height
337
HTT Horizontal Top Tube 572 605 637 669
WB Wheelbase 1157 1196 1235 1275
SOH Standover 664 680 698 179
HT Head Tube Length 100 110 120 130
  Trail
129
  Recommended Seatpost Drop 125 150
170
  Maximum Post Insertion 205 220 240 250
  Stem Length
45
  Crank Length
170
  Tire Size
2.35" – 2.6"
  Water Bottle Compatible
1 x 750 mL
